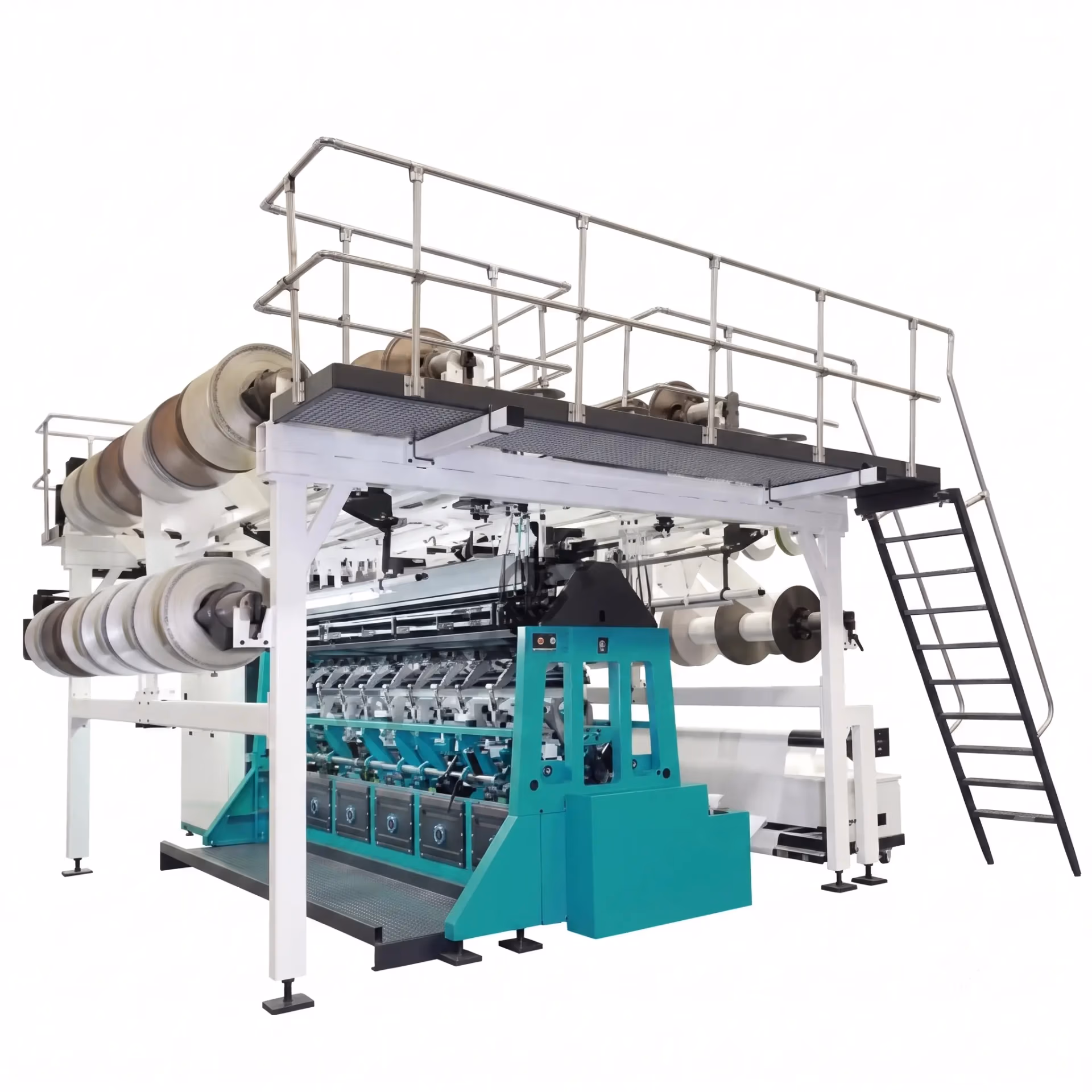

Double Needle Bar Raschel Machine RD6
Avadh Machinery Care Double Needle Bar Raschel Machine RD6
RD6-EL is designed to produce spacer textile which is also called the 3D warp-knitted textiles, such as sports shoes, automobile seats, mattress textiles, and others. The thickness of which could between 1mm up to 50mm.
- Model: RD
- Brand:Avadh Machinery Care
- Width: 138“，200”，210“
- Gauge: E18, E22, E24, E28
Product Description
- Overview
RD6-EL is designed to produce air-mesh spacer textile which is also called three-dimensional mesh fabrics, which have a vast application, such as sports mesh shoe uppers, automotive seats, mattress textiles, and others.
Avadh Machinery Care RD6-EL double needle bar raschel machine enters the market since 2014, and continuous improvements seen in its warp knitting mechanical structure and electronical elements over the years. With more market-tested technology applied and durable parts adopted, Changzhou Avadh Machinery CareRD6-EL warp knitting machine is becoming one of the most welcome machine models among Avadh Machinery Carewarp knitting machines.
Avadh Machinery Care RD6-EL warp knitting machine has 6 ground bars, the knock-over comb bar distance is from 2 to 12 mm, and the working width of RD6EL has 138″, and 210″ two widths in general.
Meanwhile, Avadh Machinery Care also produces other types of double-needle bar warp knitting machines, like RD7, RDJ5/1, RDJ4/2, and AZ2885.
- Product Description
| 1 | Working Width | 138″ ,210″ |
| 2 | Machine Gauge | E18/E22/E24/E28 |
| 3 | Working Speed | 50-750rpm (Depends on Yarn and Designs); |
| 4 | Knock-over Comb Bar Distance | 2-12mm; |

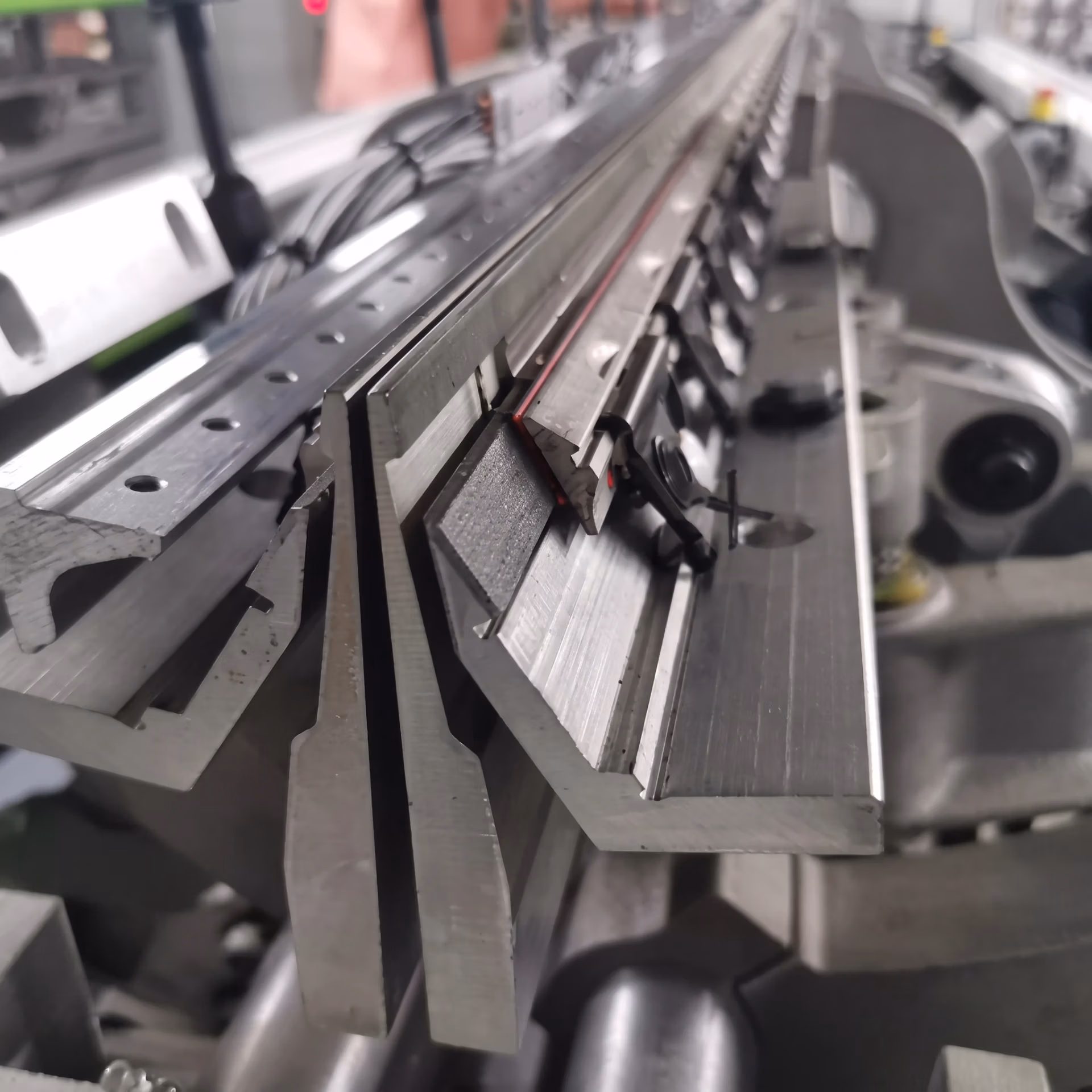

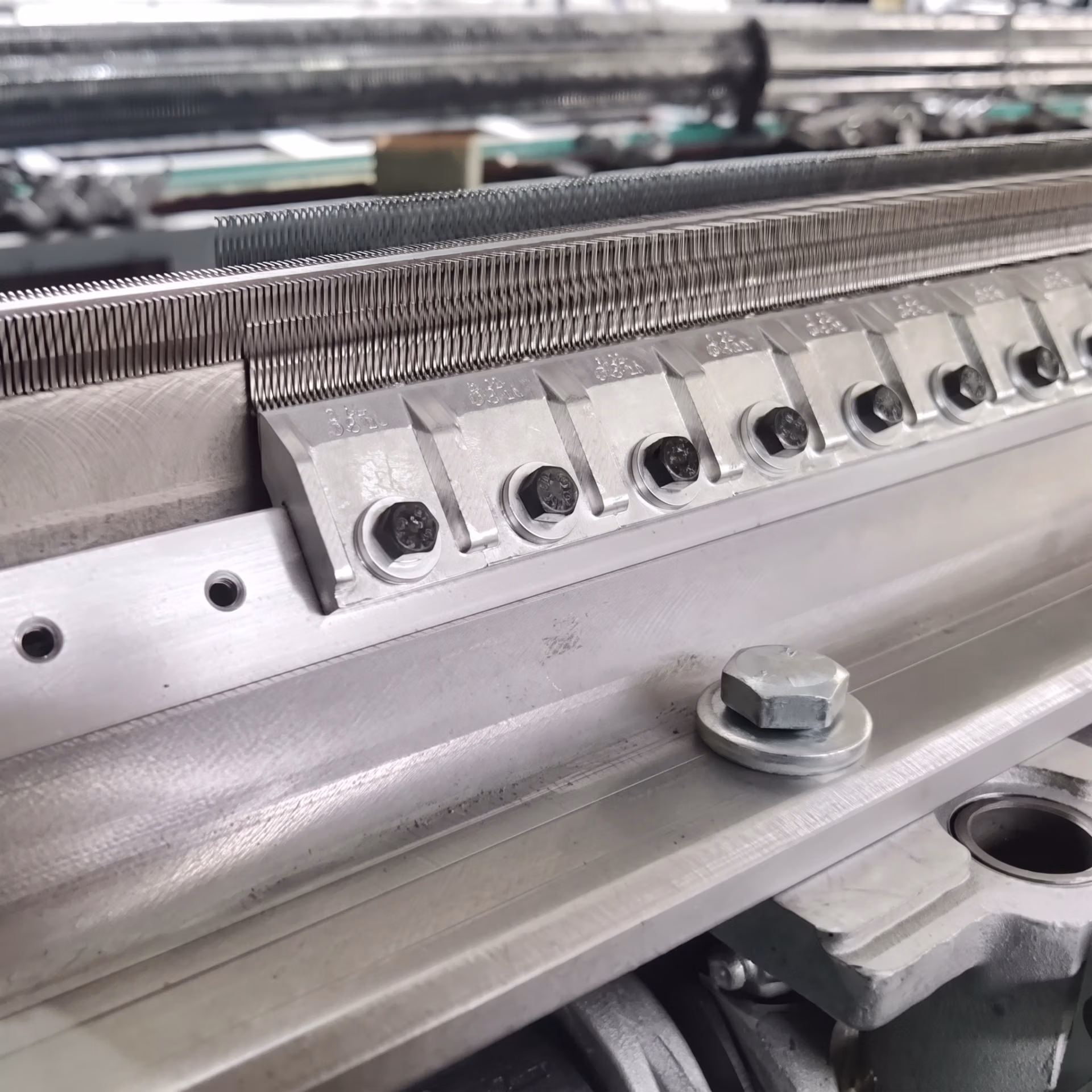

| 5 | Bars/Knitting Elements | 2 needle bars with latch needle units (individual needle and needle block optional), 2 knock-over comb bars, and 6 ground bars; |
| 6 | Pattern Drive System | Pattern Discs Drive or EL Drive (Optional); |
| 7 | Yarn Let-off Device | EBC Yarn Let-off System; |
| 8 | Fabric Take-up | Electronic Fabric Take-up System; |
| 9 | Batching Device | Electronic Batching Device; |
| 10 | Laser Stop Detector and Online Service Program Equipped; | Optional. |
| 11 | Air Blower Device | Optional. |
| 12 | In-house test | Optional. |
- Machines' Features:
1. Stable Working Performance;
2. Reliable Spare-parts Partners:
(1) Needle Elements Suppliers: Groz-Beckert, Saxonia;
(2) EL Drives Suppliers: Mitsubishi, Nidec, Yaskawa;
(3) Bearing Suppliers: NSK, INA, BUT, FAG;
(4) Needle Beds and Bars Material: Magnalium Material;
(5) Electrical Elements Suppliers: Schneider, Siemens, Omron, INVT;
(6) Take-up Belt: Bobotex.
3. Overseas Service Teams: Turkey, India, Egypt, Indonesia, and Iran.

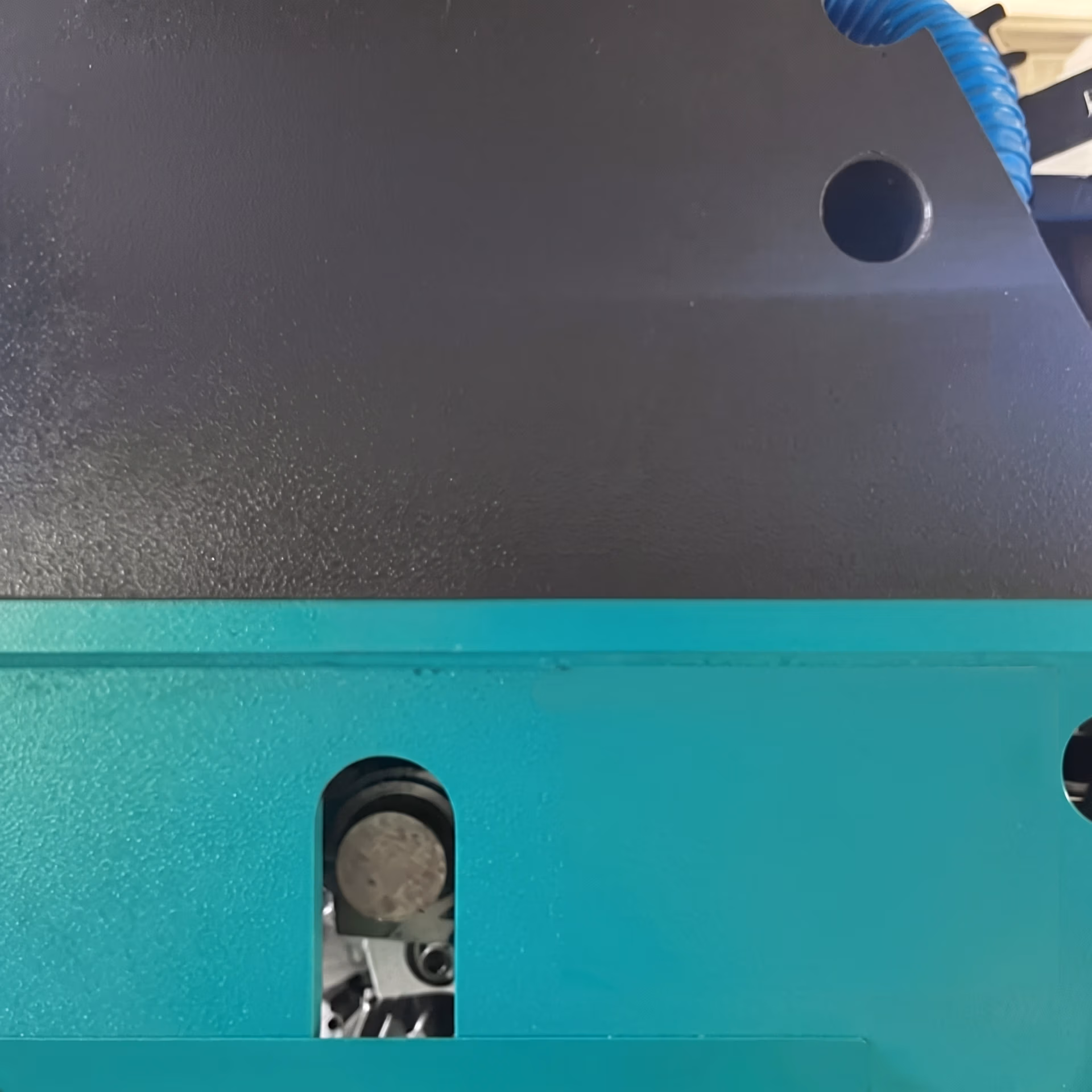

- Machine Images:
- Machine Images:

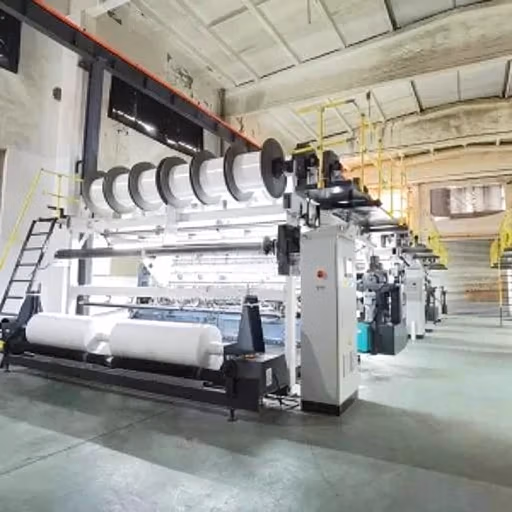

RD6-EL running for producing air mesh sports shoe textile in Türkiye, 2021.
- Company Information
Manufacturing Factories:
We have four workshops, two of them are warp knitting machines and warping machines workshops, another two are fabric production mill and spare parts manufacture workshop separately.
Most of our newly developed machines will be used in our fabric knitting factory for a profound test, after which, we will promote into the market.

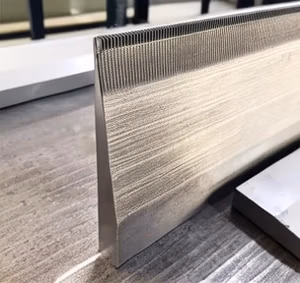

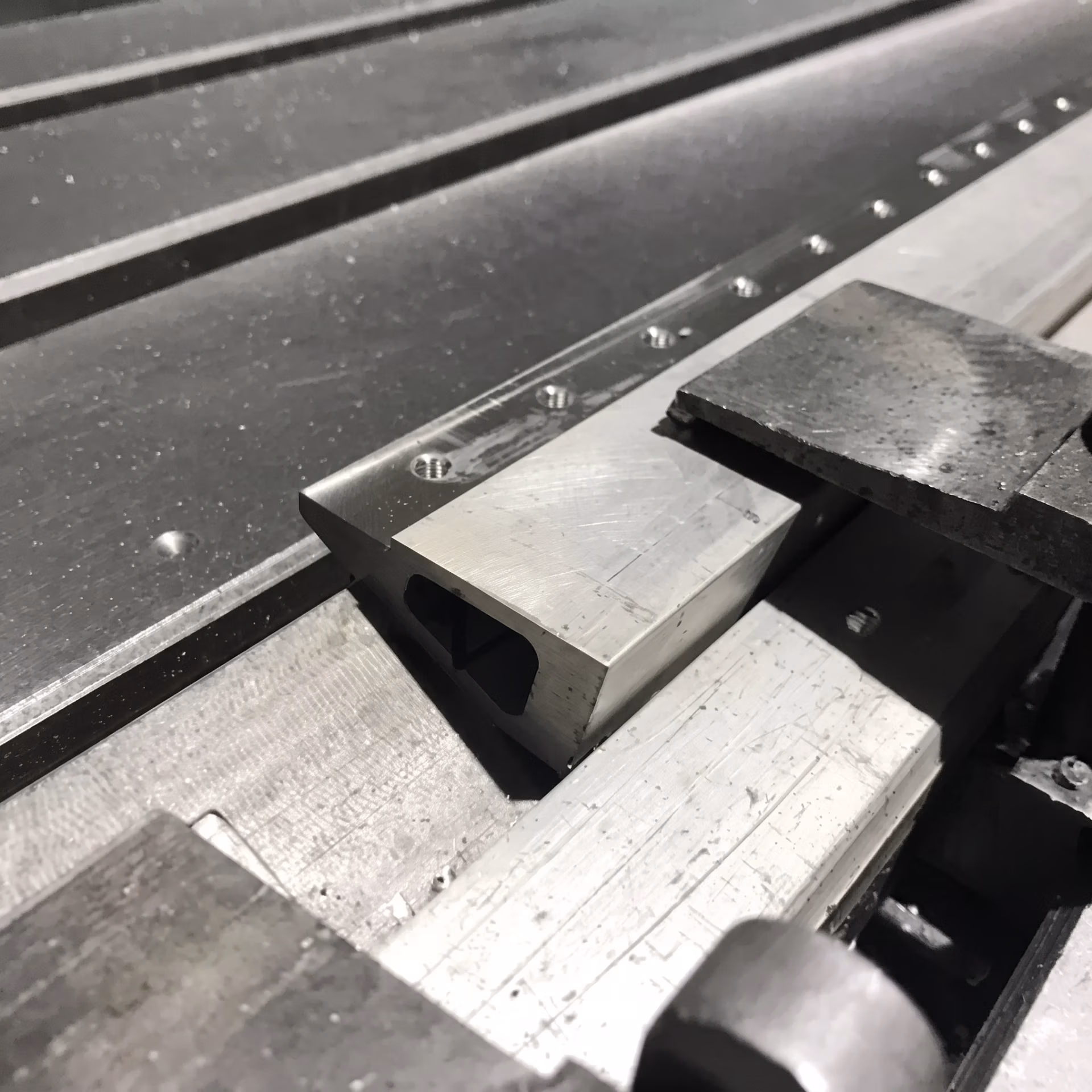

Spare parts such as compound needle bed, tongue needle bed, needle guide bar, sinker bed, and latch needle bed are produced in our CNC machines, the bars or beds used on Chinese and German warp knitting machines.
Global Exhibition:
We attend professional textile machinery exhibitions worldwide, such as ITMA, ITM, ITME, and many others. During the exhibition, we not only display our newly developed technology, but also offer economical products to our customers.
It is also a good time to collect customers' feedback and new demand, so that we could make better machines for them.
Commuication and Cooperation is our theme to participate in all exhibitions.
Customer Training:
Technical support plays an extremely role in warp knitting machine services. We offer different forms of training, including professional manul book, online guide, video album, and on-site training.
So far, we have offered on-site training in more than 10 countries, and build up our own local service teams in Turkey, India, Pakistan, Indoneisa, Iran, and Egypt.
Our in-time & professional technical support gains a highly reputation in markets.
- FAQ
Our RD6 EL double needle bar warp knitting machine can run at a stable machine speed around 600-750RPM.
1. we have experienced installtion and R&D team for this type machine
2. we adopts branded electronical parts and imported machenical parts for our machines to ensure it's basic quality condition.
3. we tested each machine before delivery.
4. we collect feedback from our machine adjust team and then improve our technology accordingly.
so with years market test, our machine quality is good and stable.
We provide local service in India, Türkiye, Egypt, Indonesia, Pakistan, and Iran so far, and we will enlarge our service teams in more countries shortly. but meanwhile, we have detailed machine Operation Manual and on-line technical support. most of our customers can finish machine adjustment efficiently
