Avadh Machinery Care Stitch-bonding Machines
ML-type needles in gauge 16, gauge 18, gauge 20, and gauge 22 are popular. We provide thousands of ML and L needles to the international market every month. Because of their good price and durable quality, our needles are widely accepted by our customers. As a warp knitting machine manufacturer, our spare parts are more qualified and the price is better.
Product Description
- Overview

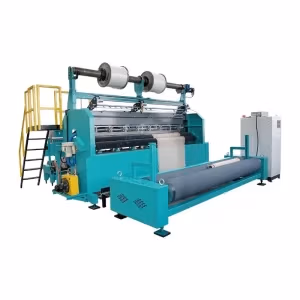

Advanced Stitch-Bonding & Non-Woven Warp Knitting Machines
High-Speed Production for Technical Textiles
Our advanced High-Advanced Stitch-Bonding Warp Knitting Machine line is engineered precisely to bridge the gap between traditional warp knitting and high-efficiency non-woven web bonding. Designed for robust, multi-shift production, these machines offer flexible configurations from 1 bar to 4 bars to serve the fast-growing technical textiles sector.
By combining mechanical web-bonding with optional parallel warp inserts, our machinery allows you to manufacture highly durable, stable, and cost-effective structural fabrics tailored for sensitive industrial applications.<br>
Technical Application Spectrum
This machinery line provides an optimal production foundation for key technical and consumer fabric categories:
- Footwear Components: Precision-bonded fabric layers ideal for durable shoe interlinings and structural reinforcement.

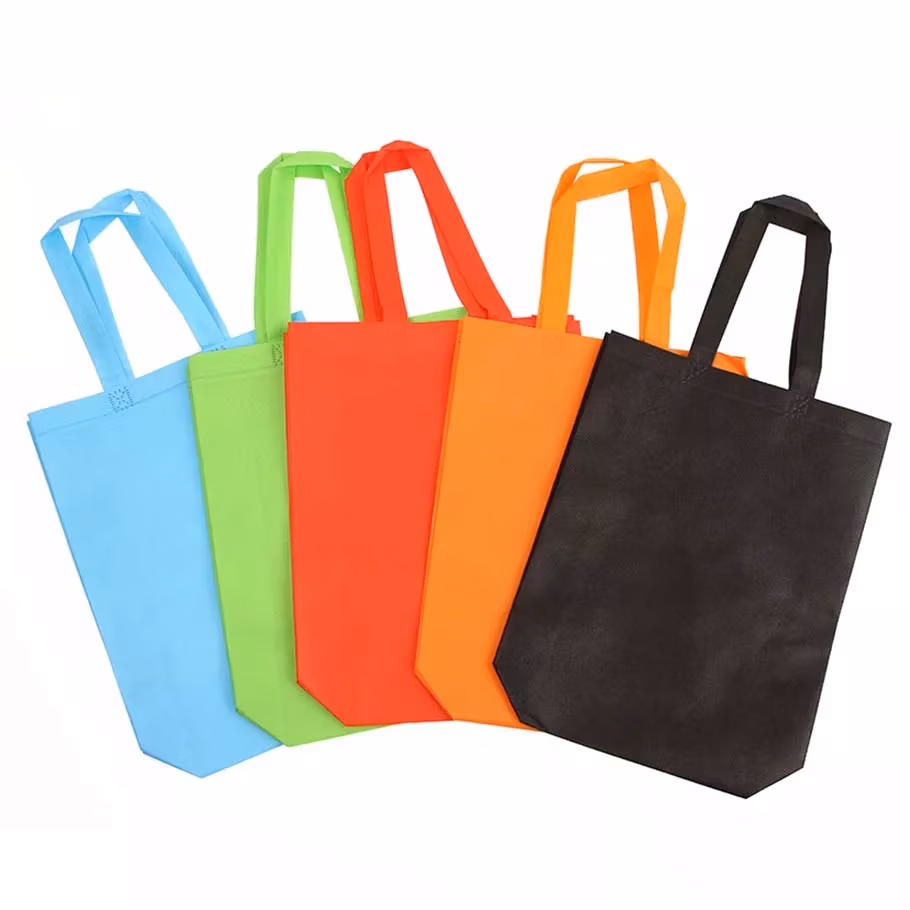

- Eco-Friendly Packaging: High-volume material processing perfect for reusable shopping bags.

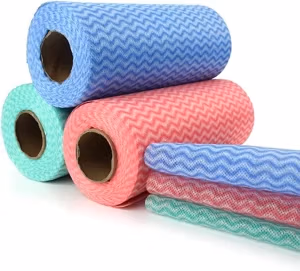

- Consumer Hygiene & Cleaning: Highly absorbent, structurally sound non-woven towels and disposable dishcloths.
- Technical Composites: Heavily reinforced composite glass fiber textiles designed for structural, aerospace, industrial, and construction reinforcement layout setups.
Engineering Features & Automated Advantages
- High-Speed Operational Velocity: Reaches operational outputs of up to 1,500 RPM without risking stitch degradation or web separation.
- Electronic Take-Up & Batching: Eliminates mechanical gear errors. The electronic take-up and smart batching units guarantee perfectly linear fabric tension during high-speed winding to avoid distortion.
- Extensive Gauge Versatility: Easily adapt your setups using our full gauge lineup ranging from open coarser structures (F7) down to tight, high-density matrices (F22).
- Rugged 4-Bar Structural Flexibility: Scale your structural pattern complexity from simple 1-bar web consolidation up to intricate 4-bar technical matrices involving multiple independent yarn inlay guides.
- Stitch-bonding Machine Technical Data
| 1. Working Width: | 2400mm, 2800mm, 3300mm, 3600mm, 4400mm; |
| 2. Gauge: | F7, F12, F14, F16, F18, F20, and F22. |
| 3. Bars Amount: | 1 Bar |
| 4. Working Speed: | 50-1,500rpm (Depends on Yarn and Designs); |
| 5. Stitch Length Variable: | 0.5 ~ 5.5mm |
| 6. Pattern Drive System: | Pattern Disc Drive; |
| 7. Yarn Let-off Device: | Electronic Yarn Let-off System; |
| 8. Fabric Take-up: | Electronic Fabric Take-up System; |
| 9. Batching Device: | Electronic Batching Device; |
| 10. Warp Beam Size: | Φ30″x21″ |
| 11. Main Power: | 7.5KW (2800,3600mm), 11KW (4400mm) |
