Double Needle Bar Raschel Warp Knitting Machine RD7-EL
Avadh Machinery Care Double Needle Bar Raschel Warp Knitting Machine RD7-EL
The RD7-EL Double Needle Bar Raschel Warp Knitting Machine (equipped with electronic EL guide bar control) is a high-speed, versatile warp knitting system designed to produce 3D spacer fabrics, mesh structures, seamless textiles, and technical outerwear.
- Model: RD7-EL
- Brand:Avadh Machinery Care
- Width: 138“，200”，210“
- Gauge: E18, E22, E24
Product Description
- Overview
Double-needle Bar Raschel Warp Knitting Machine is a marketable warp knitting machine, and it has a big range of applications.

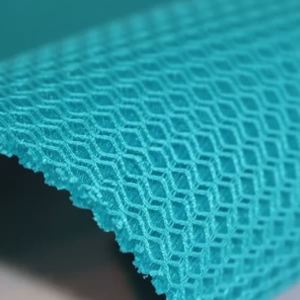

As the flagship product of double-needle bar machines, RD7-EL is designed to produce air-mesh spacer textile which is also called the 3D warp-knitted textiles, such as sports shoe uppers, automotive interiors, mattresses fabrics, spacer fabrics for backpack, and other spacer textiles.
RD7-EL raschel double-needle bar warp knitting machine has 7 ground bars, the working speed could achieve 850rpm. Because of the EL drive system, RD7-EL machine has a strong ability in the patterns development aspect.
Besides, Avadh Machinery Care RD7-EL outweighs its counterparts in its stable working performance, durable warp knitting spare parts applied, high productivity, and advanced technology intergrated.
- Product Description
Working Width/Gauge: 138″, 210″/E18, E22, E24;
Working Speed: 50-850 rpm (Depends on Yarn and Designs);
Knock-over Comb Bar Distance: 2-12 mm;
Bars/Knitting Elements: 2 needle bars with lacth needle units (individual needle and needle block optional), 2 knock-over comb bars, and 7 ground bars;
Pattern Drive System: Pattern Discs Drive or EL Drive (Optional);
Yarn Let-off Device: EBC Yarn Let-off System;
Fabric Take-up: Electronical Fabric Take-up System;
Batching Device: Electronical Batching Device;
Laser Stop Detector, Air Blower Device and Online Service Program Equipped;
Heating System: Optional.
- Machines' Features:
Component & Engineering Value Breakdown
Needle Elements (Groz-Beckert, Saxonia): German-engineered precision needles minimize yarn friction and breakage. They maintain dimensional stability even under high-speed operation, ensuring high fabric quality.
EL Drives (Mitsubishi, Nidec, Yaskawa): Precision Japanese servo systems provide electronic guide bar control (EL drives). This enables complex pattern changes without mechanical pattern discs while preserving exact shogging accuracy.
Bearings (NSK, INA, FAG, BUT): Utilizing top German and Japanese bearing brands significantly reduces rotational friction, vibration, and thermal expansion, prolonging the overall mechanical lifespan of the drive shafts.
Needle Beds & Bars (Magnalium Alloy): Aluminum-magnesium alloy balances high tensile strength with low density. Reducing the moving mass lowers inertia during rapid reciprocal movement, allowing higher RPMs without excessive vibration or thermal expansion.
Electrical Controls (Siemens, Schneider, Omron, INVT): Standardizing on global industrial automation vendors guarantees logic control stability and makes sourcing replacement relays, PLCs, and touchscreens straightforward anywhere in the world.
Take-up Belt (Bobotex): Specialized technical roller covers prevent fabric slip during continuous take-up, ensuring even fabric tension without damaging delicate mesh or loop structures.
Global Service Network (Turkey, India, Egypt, Indonesia, Iran): Covering key textile manufacturing hubs ensures prompt on-site installation, quick machine debugging, and local availability of critical spare parts.

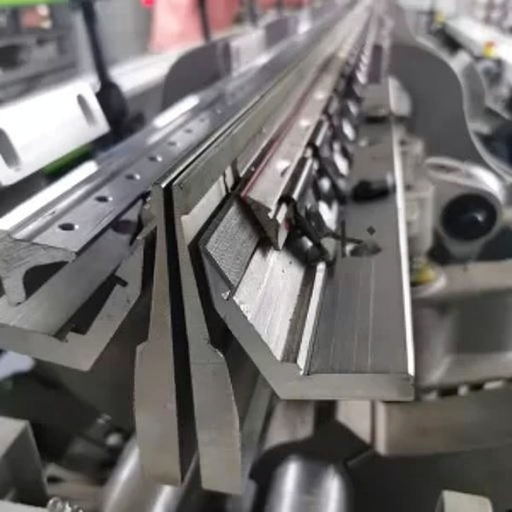

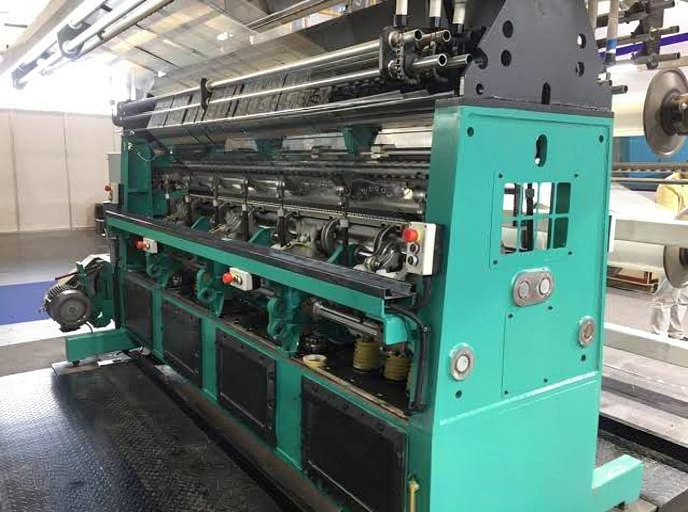

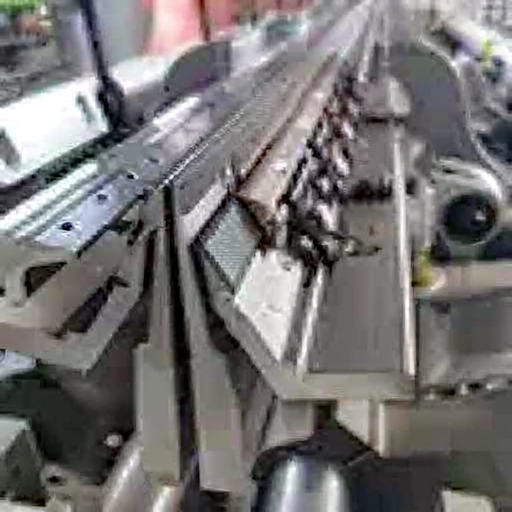

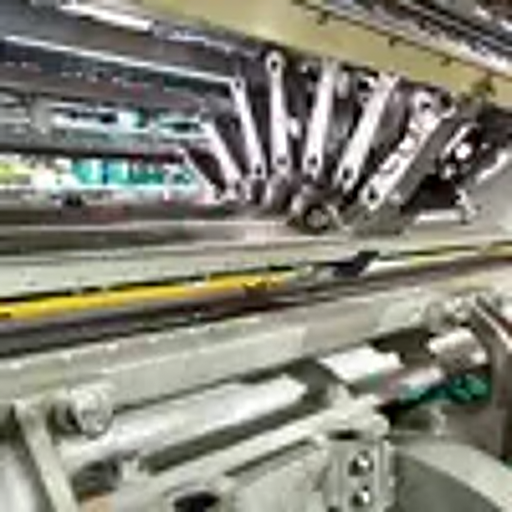

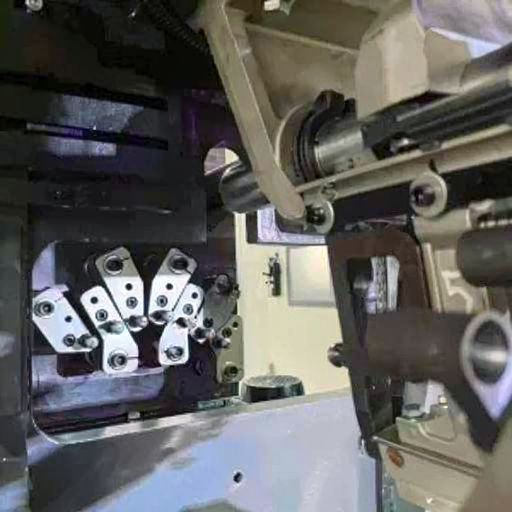

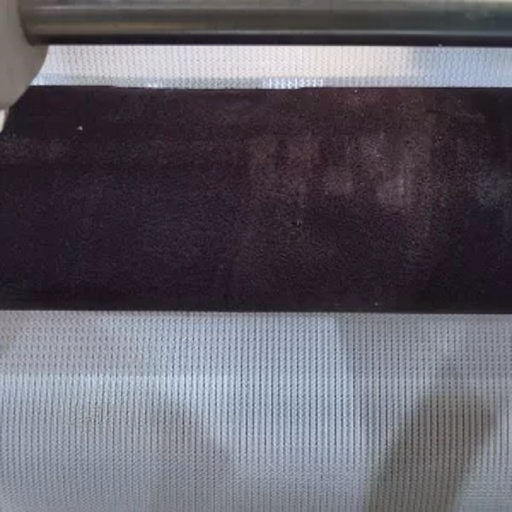

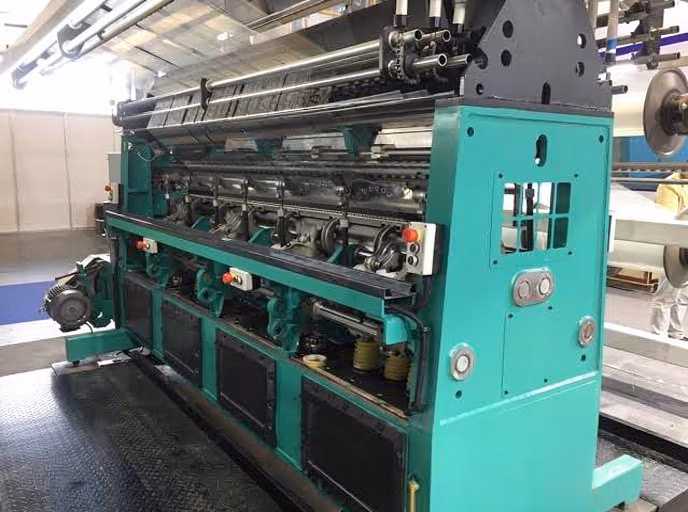

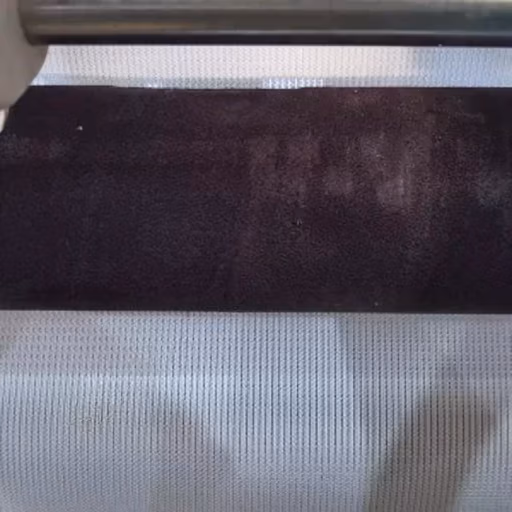

- Machine Images:
- Our Services
Local Technical Support: Dedicated service coverage across key regional hubs (Turkey, Egypt, India, Indonesia).
Real-Time Online Assistance: Fast, responsive remote support to minimize downtime.
Rigorous Pre-Delivery Testing: Every machine undergoes full in-house quality testing prior to dispatch.
Comprehensive Documentation: Supplied with detailed operation and maintenance manuals.
- Company Information
20+ Years of Experience: Built on two decades of technical expertise and 500+ machine installations worldwide.
Local & Remote Support: Dedicated regional hubs (Turkey, Egypt, India, Indonesia) supported by real-time online assistance to minimize downtime.
Rigorous Pre-Delivery Testing: Every machine undergoes complete in-house quality testing prior to dispatch.
Comprehensive Documentation: Complete with detailed operation and maintenance manuals for seamless setup.
Driven by dedication, continuous innovation, and open collaboration, Avadh Machinery Care provides complete Warp Knitting Technology (WKT) solutions across key global markets.
Our Core Offerings
Warp Knitting Machinery: Dependable, high-performance equipment.
Spare Parts Supply: Quality components to keep your production running smoothly.
Technical Training: Practical guidance and knowledge sharing for optimal machine operation.
Global Presence & Support
With active market reach across Turkey, India, Egypt, Indonesia, Bangladesh, Brazil, Kenya, Thailand, Mexico, and beyond, we support our clients with proven technology and responsive after-sales service. Avadh Machinery Care is dedicated to driving innovation and empowering the future of the textile industry.

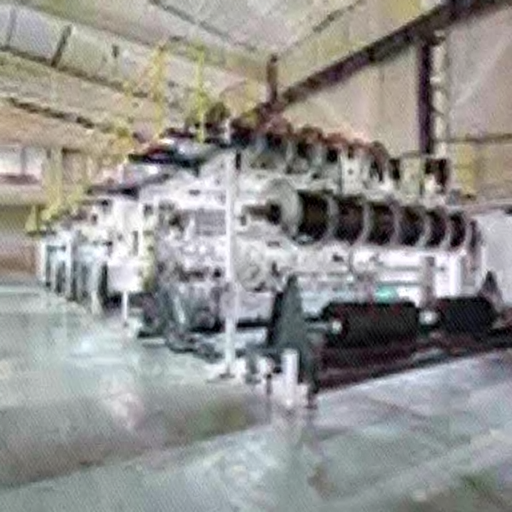

Manufacturing Factories:
We have four workshops, two of them are warp knitting machines and warping machines workshops, another two are fabric production mill and spare parts manufacture workshop separately.
Most of our newly developed machines will be used in our fabric knitting factory for a profound test, after which, we will promote into the market.
Spare parts such as compound needle bed, tongue needle bed, needle guide bar, sinker bed, and latch needle bed are produced in our CNC machines, the bars or beds used on Chinese and German warp knitting machines.
Global Exhibition:
We attend professional textile machinery exhibitions worldwide, such as ITMA, ITM, ITME, and many others. During the exhibition, we not only display our newly developed technology, but also offer economical products to our customers.
It is also a good time to collect customers' feedback and new demand, so that we could make better machines for them.
Commuication and Cooperation is our theme to participate in all exhibitions.
Customer Training:
Technical support plays an extremely role in warp knitting machine services. We offer different forms of training, including professional manul book, online guide, video album, and on-site training.
So far, we have offered on-site training in more than 10 countries, and build up our own local service teams in Turkey, India, Pakistan, Indoneisa, Iran, and Egypt.
Our in-time & professional technical support gains a highly reputation in markets.
- FAQ
We are a specialized global supplier of textile machinery and spare parts. Rather than operating a single factory, we partner directly with leading, certified machinery builders. This allows us to source high-performance equipment, ensure strict quality control, and offer you competitive factory-direct pricing along with complete international service and logistical support.
While we do not maintain physical branch offices in every country, we provide comprehensive international service and technical support globally. We work closely with experienced regional technicians, coordinate dispatch when needed, and provide prompt online engineering guidance so your operations run smoothly wherever you are located.
We provide full technical support through high-definition video walkthroughs, step-by-step installation manuals, electrical schematics, and live remote assistance via video call. Our engineering team guides your local technical staff through every stage of setup, commissioning, and parameter calibration to ensure a seamless machine start-up.
Quality assurance is built into every step of our process:
Pre-Assembly Inspection: We source components and core assemblies exclusively from verified, ISO-standard manufacturers.
Factory Testing: Every machine undergoes thorough mechanical testing and trial running prior to packaging.
Pre-Shipment Verification: We inspect all electronic controls, alignment specs, and sea-worthy packaging to guarantee your machine arrives in perfect working condition.
